WE348-808 tube amplifier class A2, dynamic coupling * ALL TANGO transformer * no tube included

We can provide power transformer which use for 117V, 220V, 230V, 240V.
YouTube channel > Otomon Lab YouTube Channel

I will give discount 10% or more for all item in my eBay listing, contact me for more detail

WE348-808 tube amplifier class A2, dynamic coupling * ALL TANGO transformer * no tube included

THIS ITEM WAS SOLD OUT

Manufacturer:: OTOMON Lab

Audio amplifier > Tube amplifiers

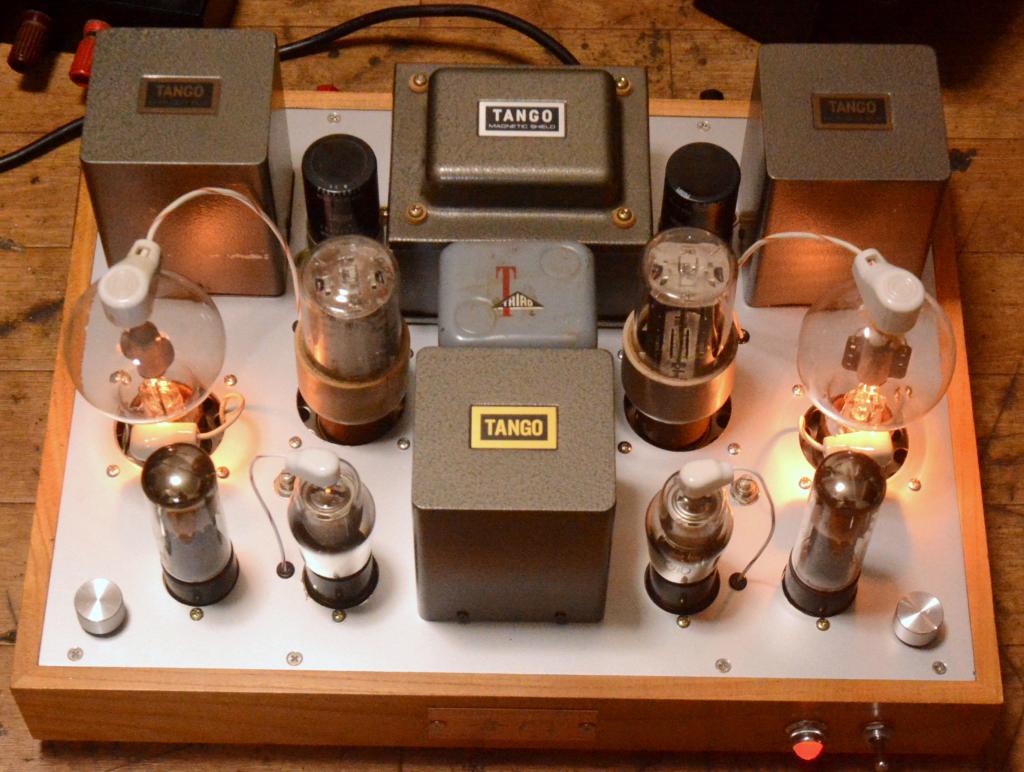

This is special made tube amplifier using 808 tube. drive tube is EL34, directly coupling. 808 's sound is better than 300B. Output power is 10W. Wooden case with top plate and bottom plate is 5mm.

Output power is about 10W, noise level is 0.2mV, you can not hear noise, hum even connect to 100db speaker. Prestage is WE348A tube, but you can use with 6J7, EF-34, 6J7G without any modification.

Drive stage is EL-34, dynamic coupling drive 808 tube. Rectifier tube is 5r4GW x 2, you can use 5U4G, GZ34, 5ar4, 274B tube as replacement without any problem.

Sound is great, Class A2 is very dynamic, wide range and musical sound.

Click to the image to view it in big size and please read our busines term before making your decision
