50 SE tube amplifier , class A1: 5W, class A2: 10W

We can provide power transformer which use for 117V, 220V, 230V, 240V.
YouTube channel > Otomon Lab YouTube Channel

I will give discount 10% or more for all item in my eBay listing, contact me for more detail

50 SE tube amplifier , class A1: 5W, class A2: 10W

This product is not for sale, if you want the same item, please contact me for special order making

Manufacturer:: OTOMON Lab

Audio amplifier > Tube amplifiers Audio amplifier > Special Order Made

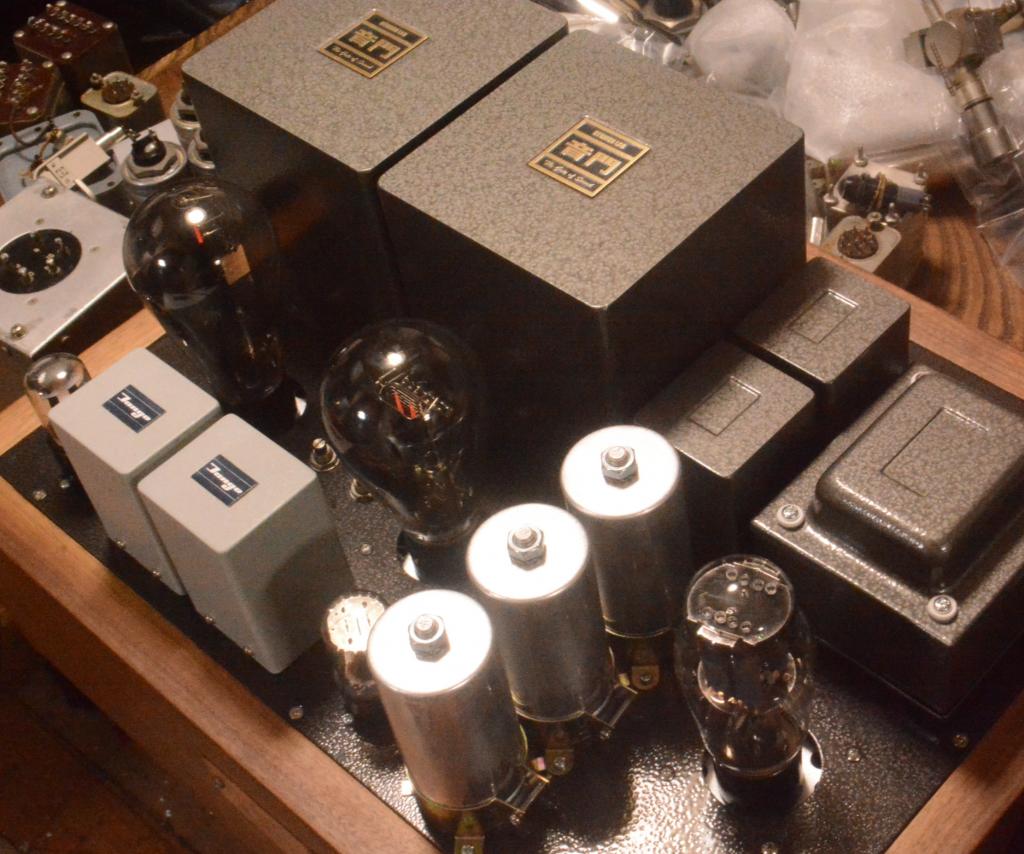

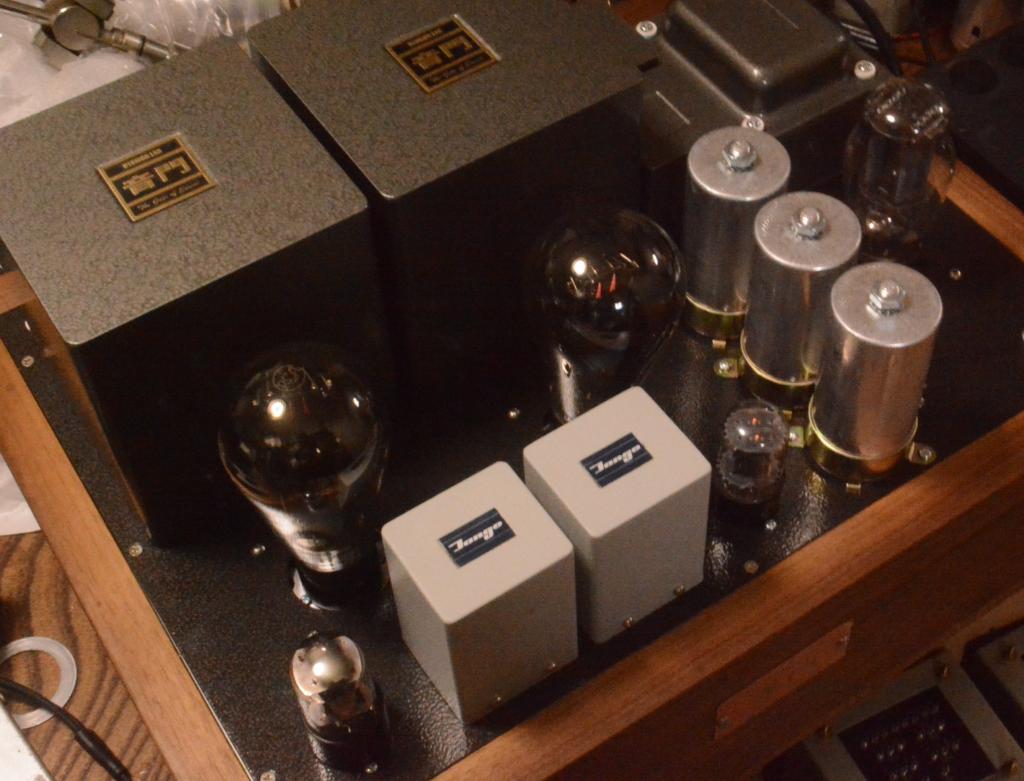

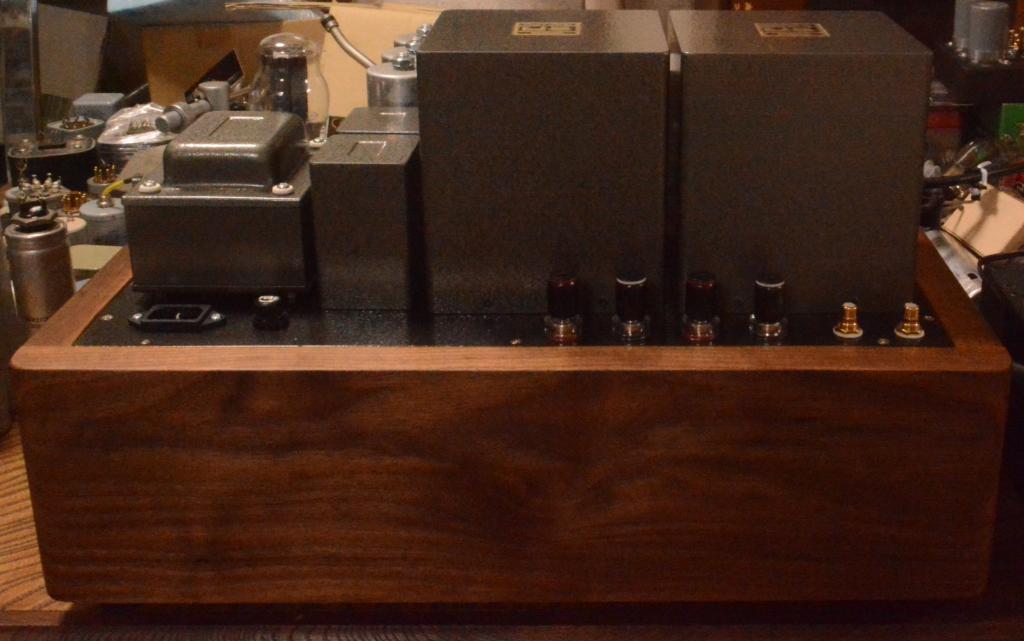

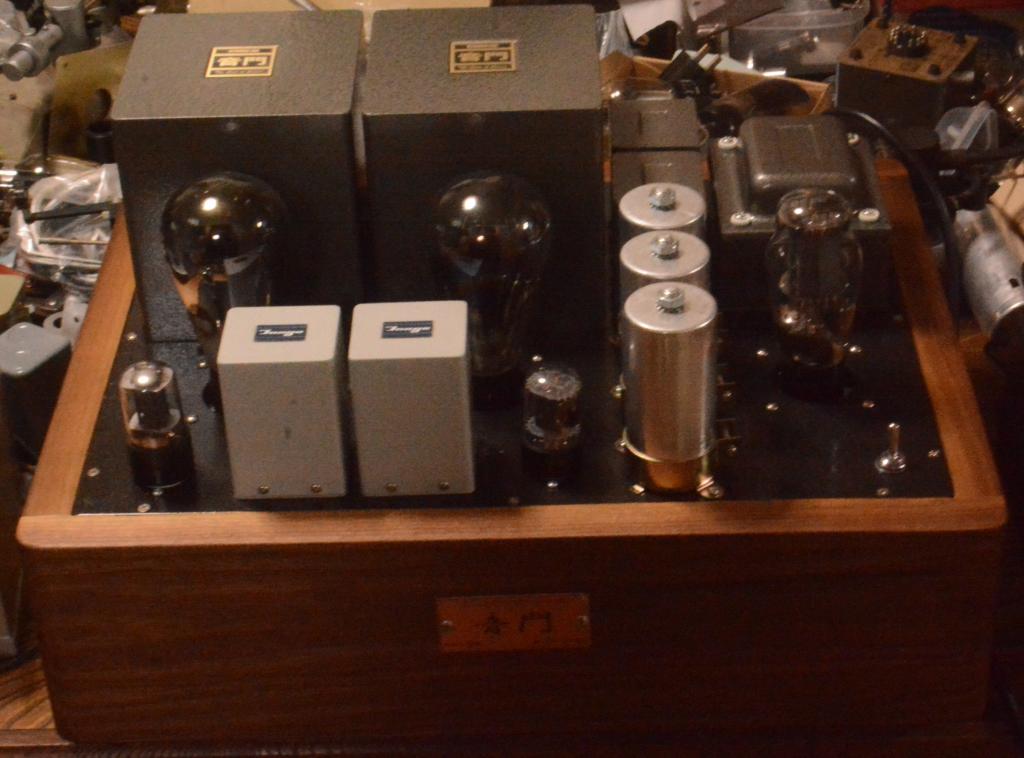

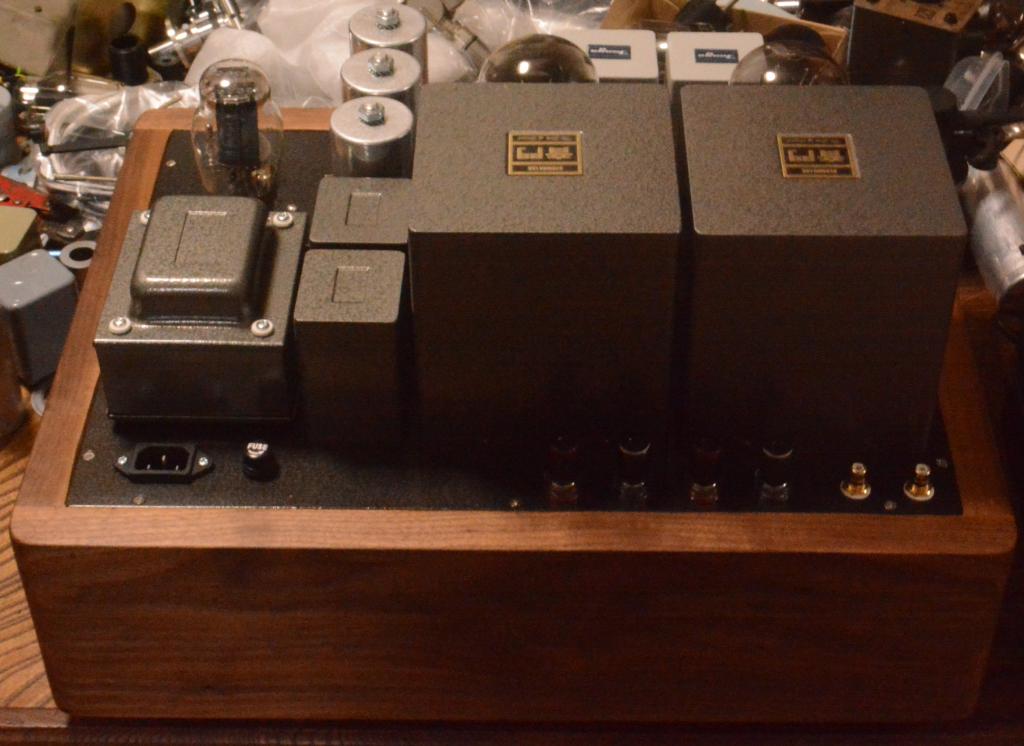

Special order made amplifier, using 6SN6 driving 50' tube. Interstage transformer is NC-16. Output Class A1: 5W, class A2: 10W

Based on order from customer who are the audio mania. Input choke was used, in LCLC filter. All transformers were special order made from ISO TANGO. Output is X-5S, interstage is NC-16

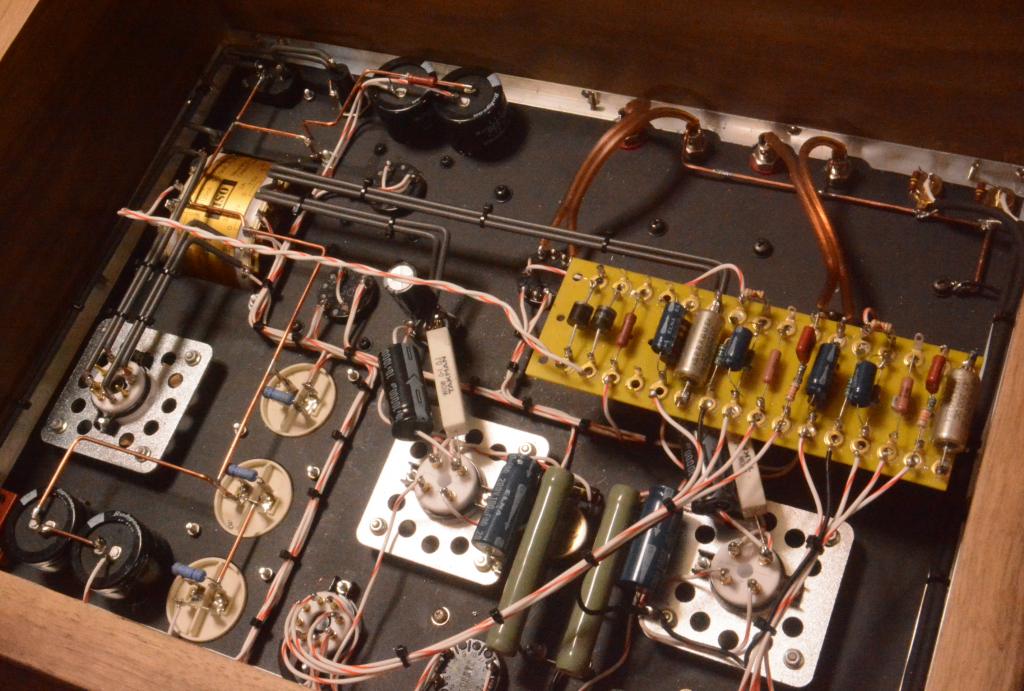

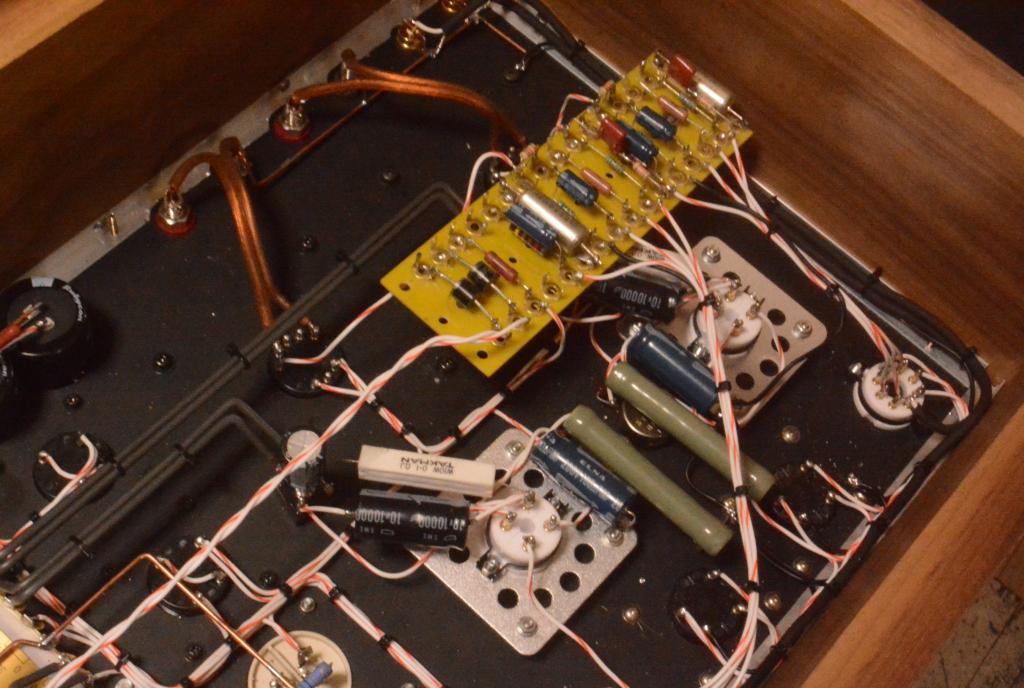

Wiring is teflon silver plated wire.

With some small change you can change tube to VT-62 or 801A

Sound is great, very musical, beautiful sound and detail. It is true sound of 50 tube. Output is about 5W class A1, Noise is 0.2mV, quite silent . This is custom made on order, you can change the power tube to 300B or 845 v..v.. as well as change the drive tube

Specification:

Response frequency : 16Hz ~ 22KHz(0db)
Distortion(THD): 0.15% 1W 10W 1%
Noise level : 0,2mV
Input level 300mV 5W 1V 10W
Ouput : max 15W class A2, class A1 : 5W
