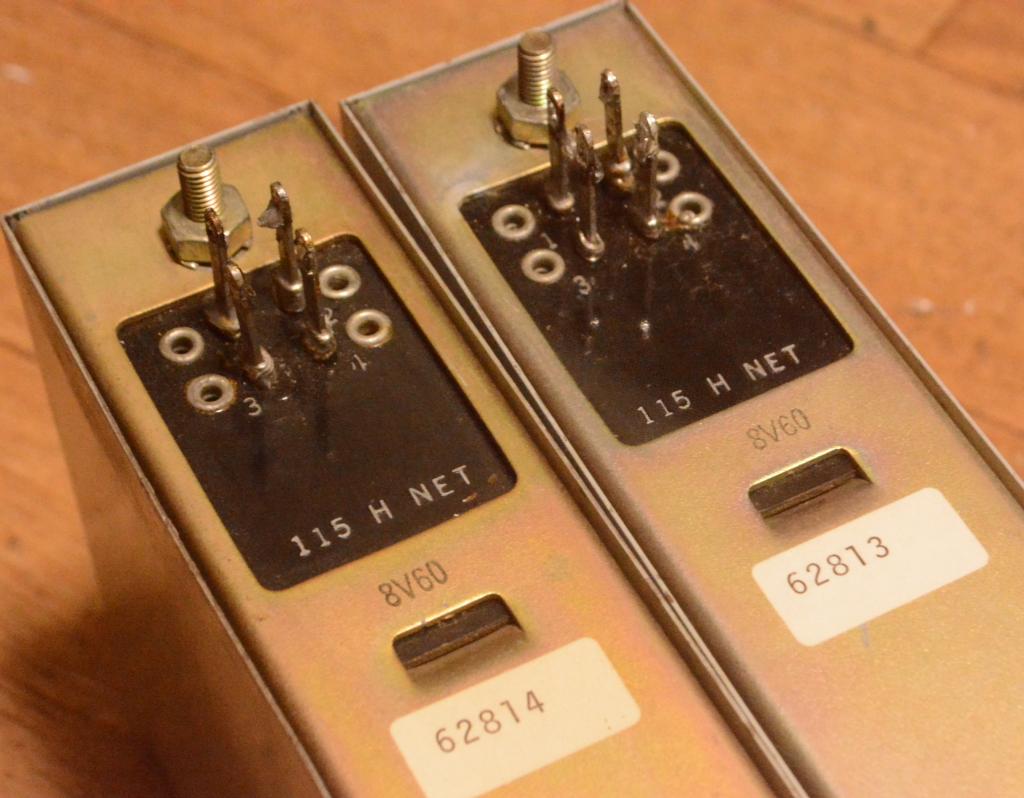

Western Electric LCR RIAA unit built by Okamoto Lab with WE parts
-
THIS ITEM WAS SOLD OUT
This product was sold out. Ask About Item

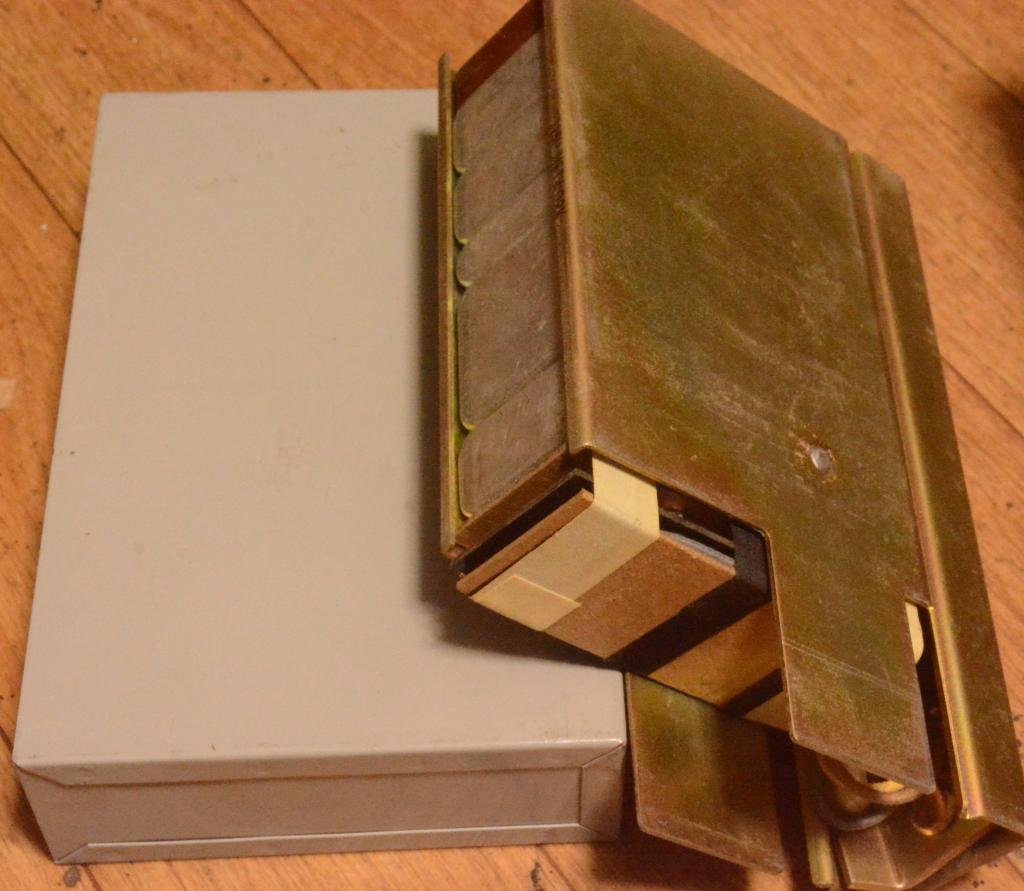

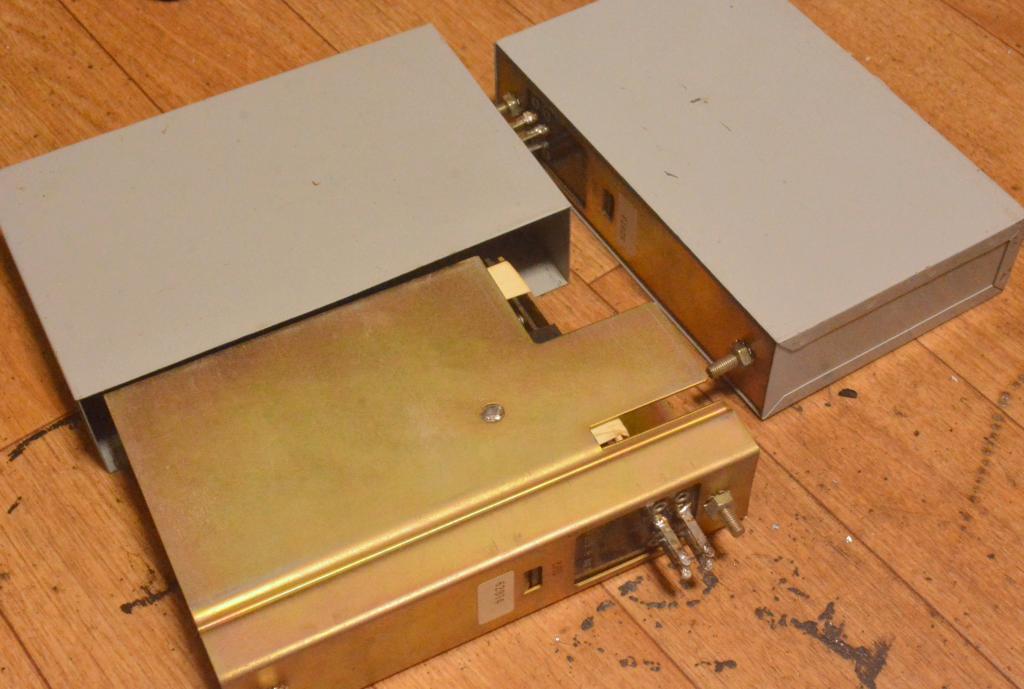

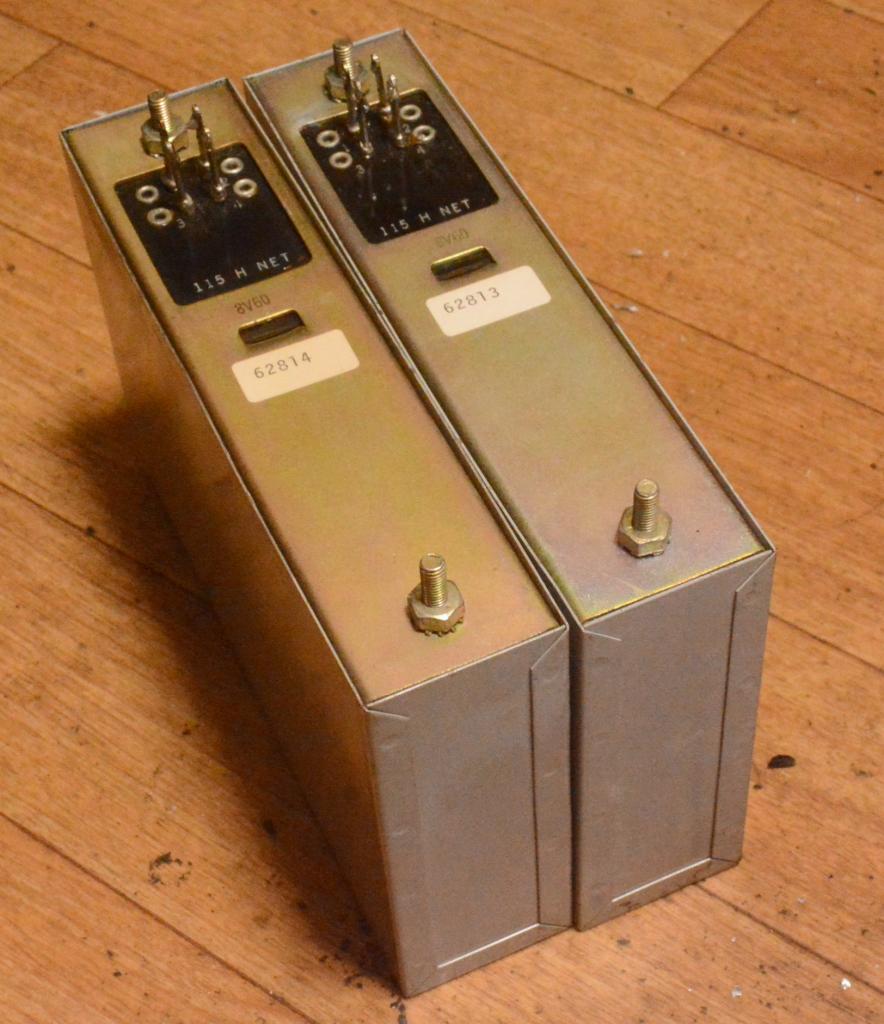

More detail pictures:
Good Items pick up
King and Queen * 300B drive 845 PP amplifier with X-5P, NC-20F, output class A 50W, class AB 100W
The Tesseract" 50 SE tube amplifier VT-62 drive 50 tube
Final Art Model 808 MkII stereo tube amplifier Shishido IITC special order transformer
10Y/VT-25/VT-62/801 stereo tube amplifier on wooden board

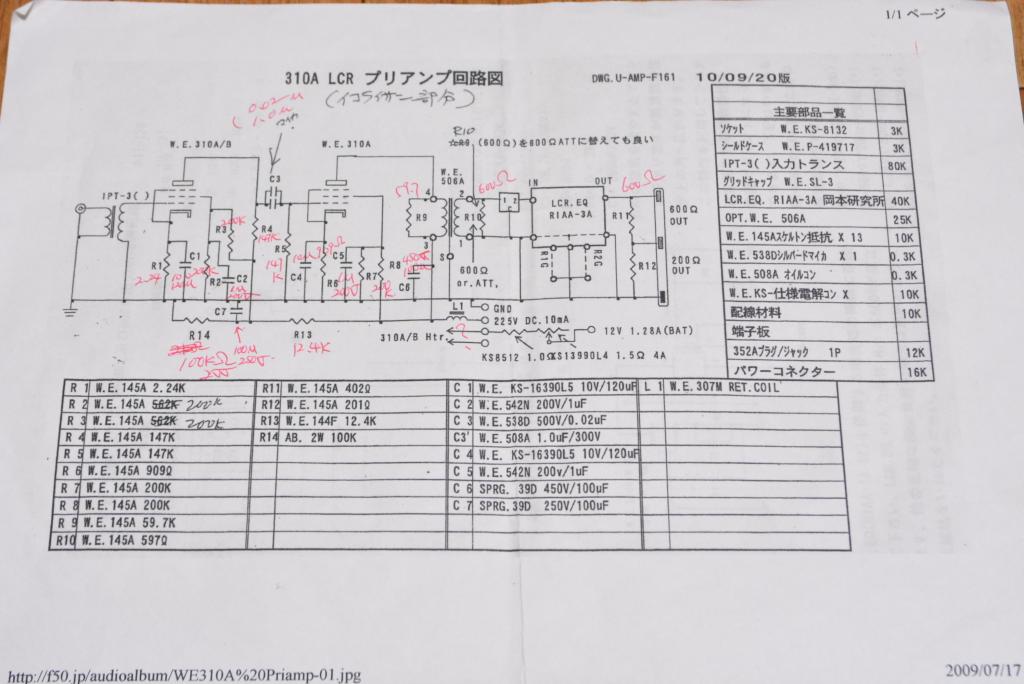

This was made for WE310A LCR amplifier that I attached schematic but you can use with any tube. input is 600ohm and output is 600ohm. You need preamp with output 600ohm to use with this unit.
Noticeable worldwide interest in the using of Inductive RIAA networks has always been driven by the desire to obtain the best possible sound quality.
The RIAA emphasis (at the recording) , a process necessary to reduce the amplitude of lower frequency and amplify the higher ones for mechanical reasons (primary to efficiently write audio information on vinyl surface ), was historically obtained by a passive LCR network. Clearly the corresponding RIAA deemphasis can be obtained at the best (i.e. with the maximum accuracy) only by a similar dual network
In a theoretical way, any transfer function can be synthesized by an LCR network (passive solution) or by an active RC network (where this network is placed in the feedback loop of an operational, or similar, amplifier).
